Ziyan Dock

Product Overview

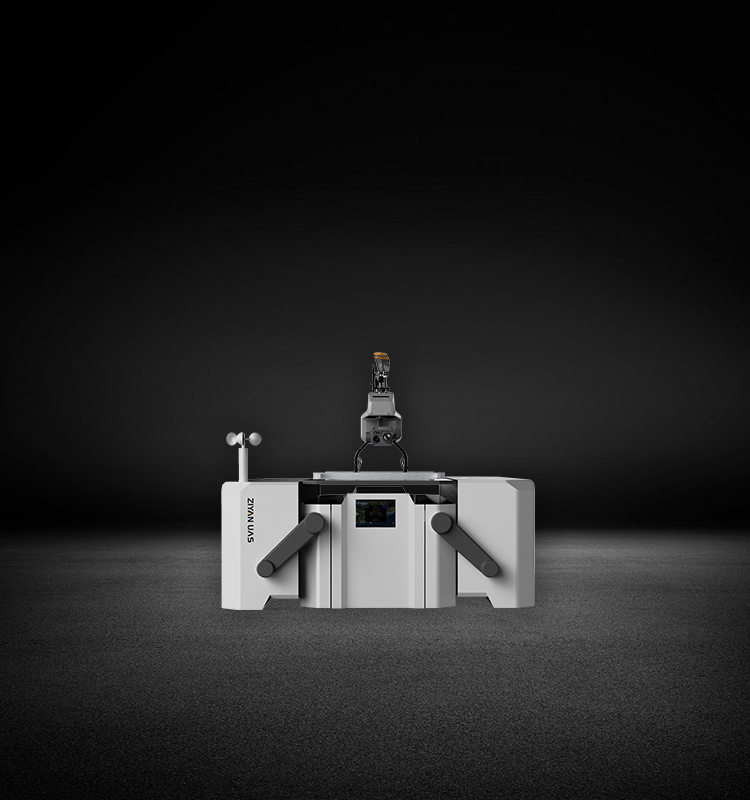

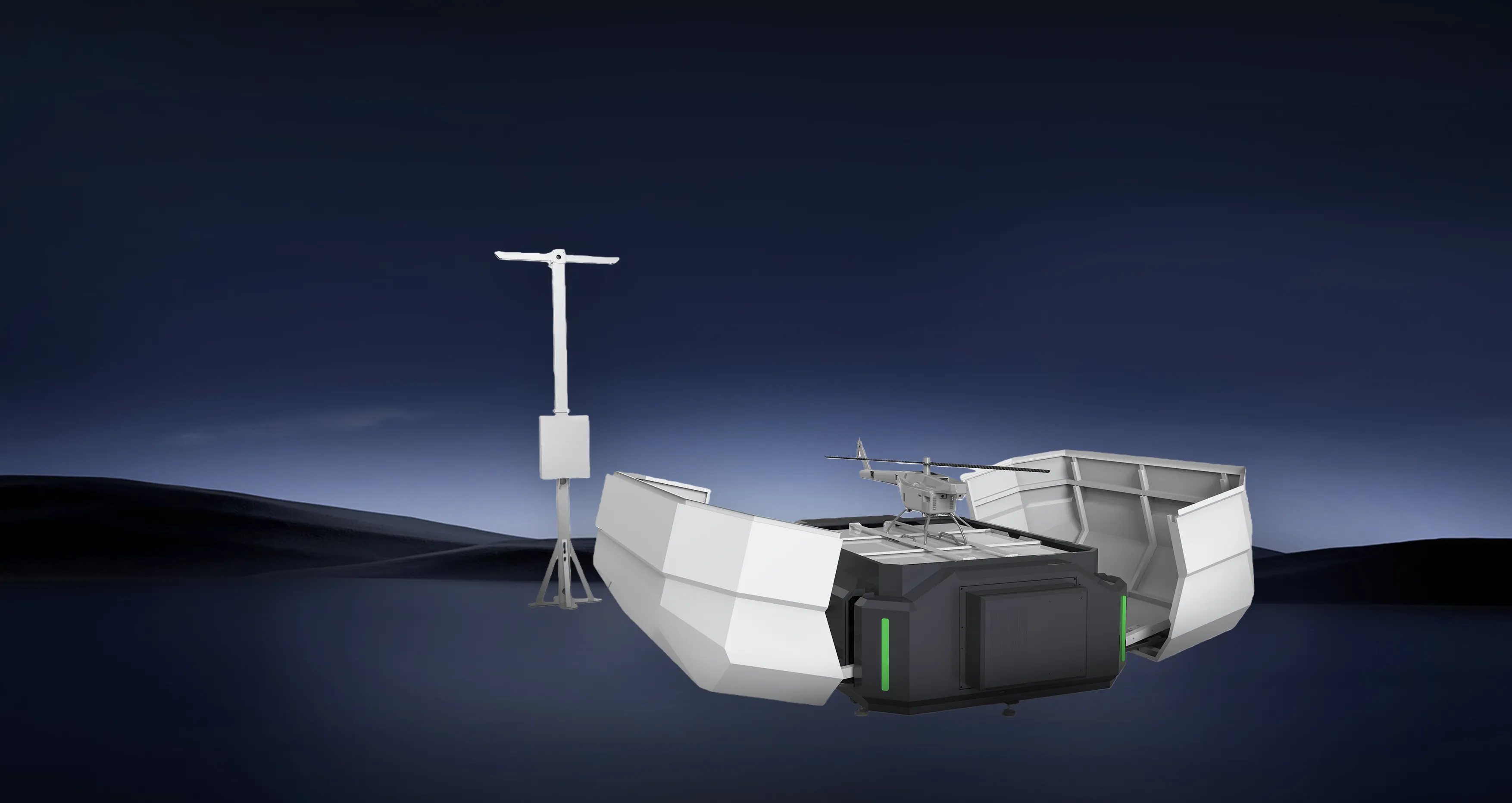

Ziyan and Jizhen have jointly launched the Ranger P2X Automatic Docking Station and hangar for unmanned helicopter, with a standard 30x tri-sensor POD, and optional near-infrared ultraviolet four-in-one camera, providing comprehensive support for power inspection. The docking station operates without human intervention and provides automatic charging, remote monitoring, autonomous flight operation, easy deployment from areas such as rooftops and remote locations.

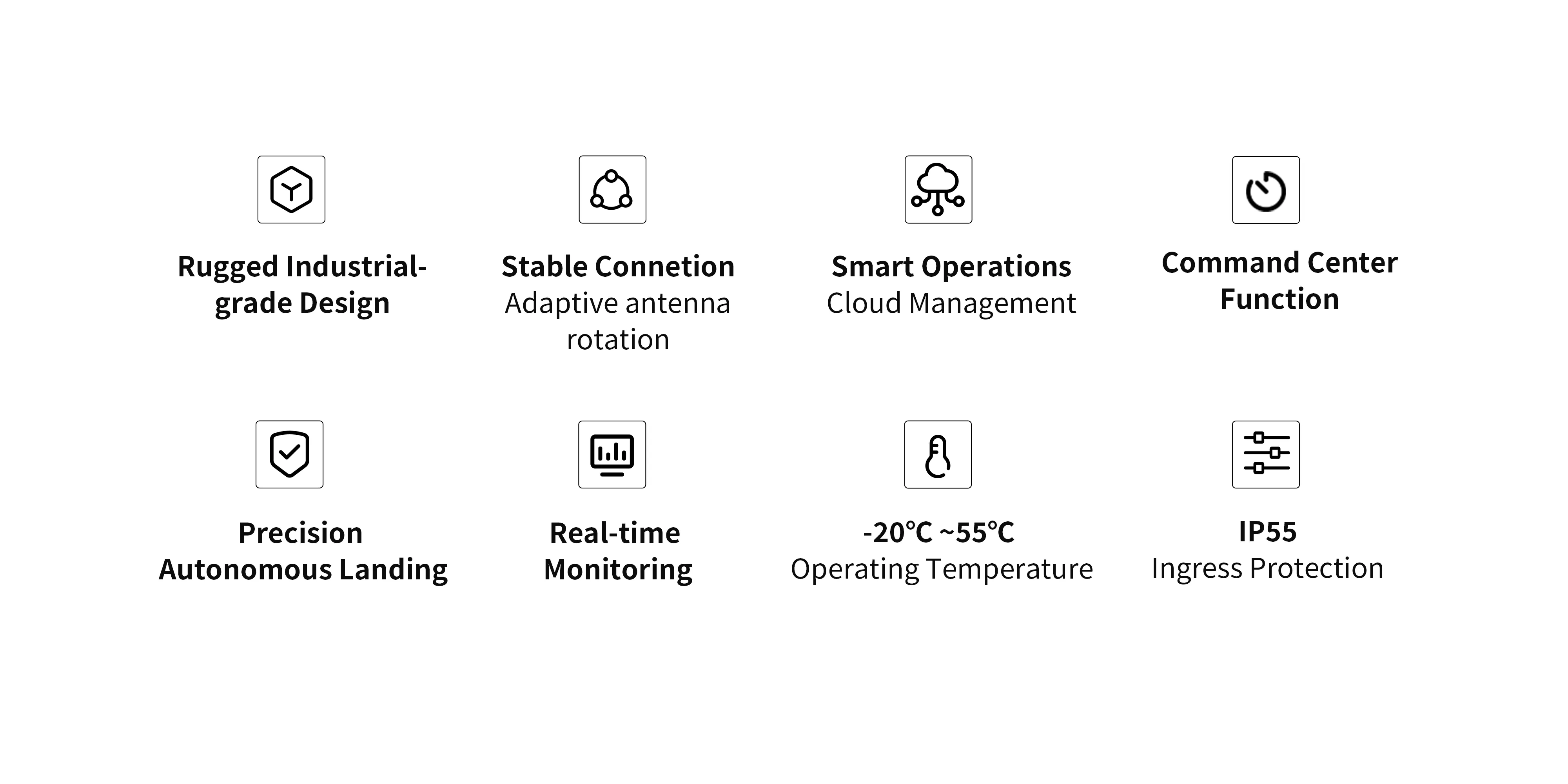

System Function

  • Autonomous Unmanned Operations

    Ziyan Dock enables automatic charging, autonomous take-off and landing, and smart operations when used with the Shadow UAV series, maximizing inspection duration and expanding operational radius
  • Mobile Platform and Flexible Deployment

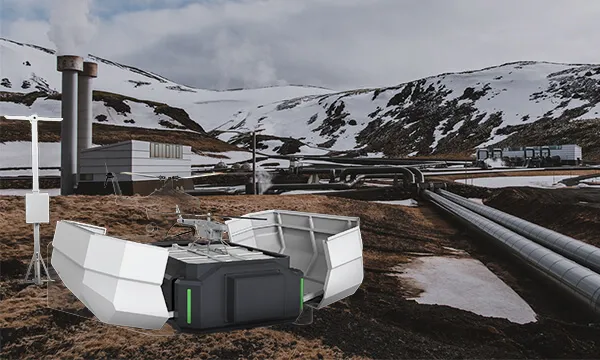

    Ziyan Dock can be flexibly deployed at long-distance pipeline stations, industrial parks, rooftop platforms, and countless other locations. It can also be quickly deployed via mobile vehicles to respond to various emergencies
  • Dock Switch

    Grid management can be achieved with multiple docks deployed in a distributed configuration. Ziyan Dock supports UAV A-B switching operations, allowing for multi-UAV relay to comprehensively cover large areas
  • Uninterrupted, Long-distance Operations

    24/7 unmanned operations in all-weather conditions with scheduled automatic take-off, cruising and landing, effectively addressing inspection needs across various sectors such as oil and gas, solar power, electricity, forestry, and transportation without interruptions

Technical Parameters

Dimensions Dock Hatch Opened: 1610mm*1085mm*450mm (L*W*H)
Dock Hatch Closed: 1610mm*545mm*790mm (L*W*H)
Weight 100kg (Excluding UAV)
Ingress Protection IP55
Operation Radius 15km
Number of UAVs Accommodated 1
Max Allowable Landing Wind Speed 14m/s
Operating Temperature -10° to 55°C
Storage Temperature -35° to 55°C
Input Voltage 100 - 240VAC, 50/60 Hz
Input Power 11500W
