Four-Sensor Camera

Advantages and Features

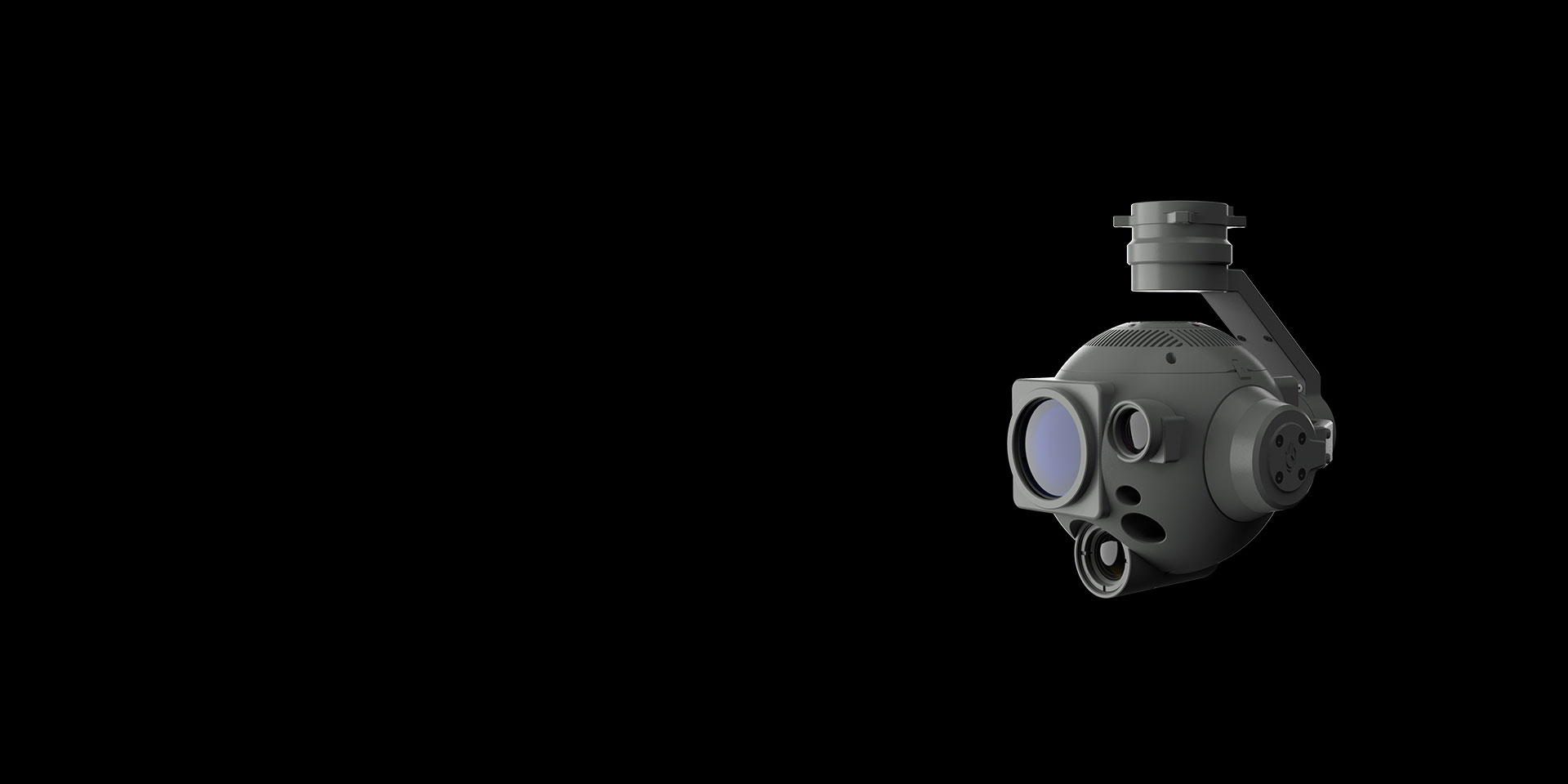

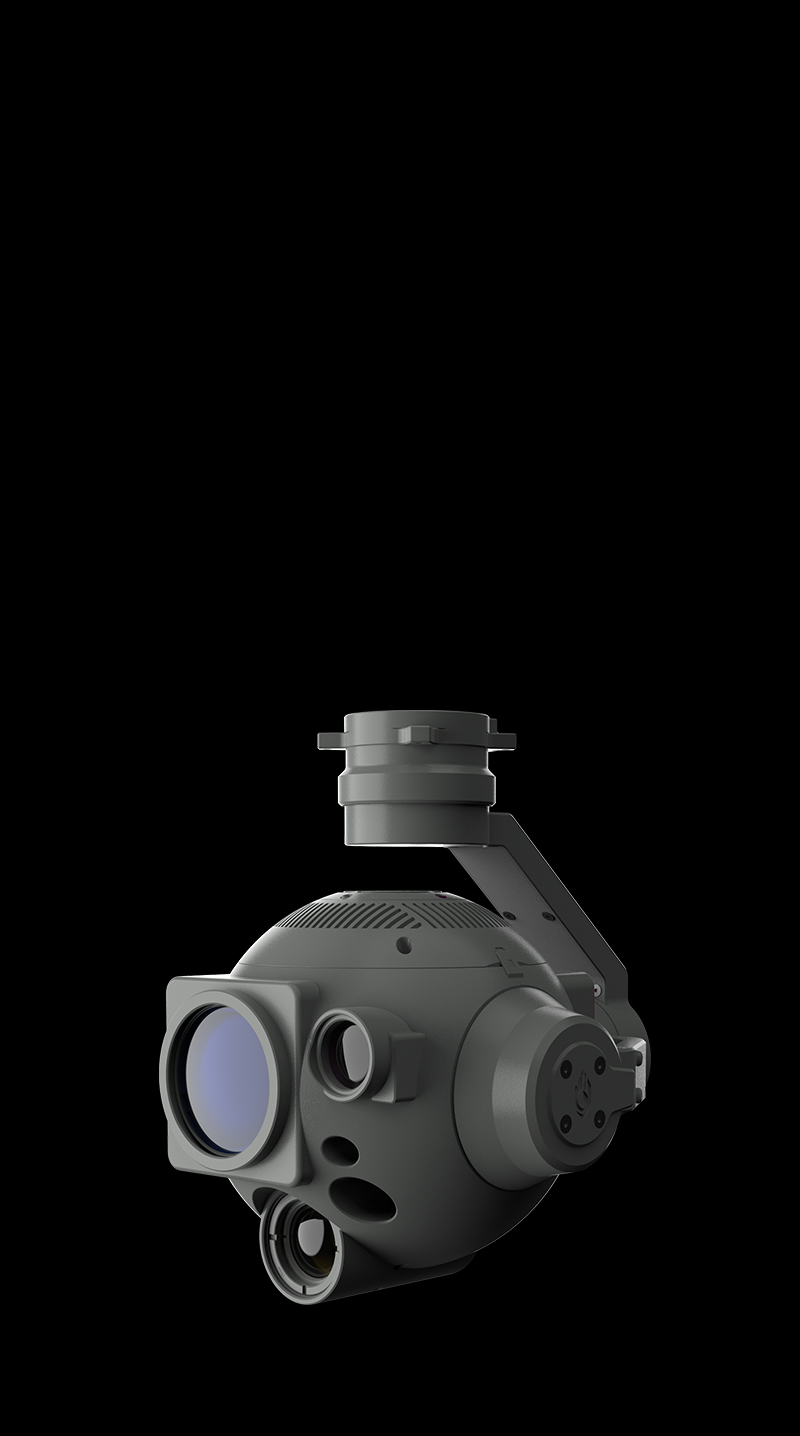

The CF01 combines dual visible light sensors, an infrared thermal imaging sensor, and a high-precision laser rangefinder. With built-in AI algorithms, it provides detailed insights, enhancing drone capabilities.

Dual Visible Light Sensors

Dual visible light sensors

Support coordinated shooting and
synchronous zoom.
AI Recognition

Built-in AI

For autonomous identification, location, and continuous tracking of people,
vehicles, and vessels.
Night Vision

Hd infrared resolution

Ensures observation even at night or in low-visibility conditions.

Data Results

Paired with Ziyan drones, the CF01 is ideal for public safety, energy inspections, maritime patrols, etc.

Visible light

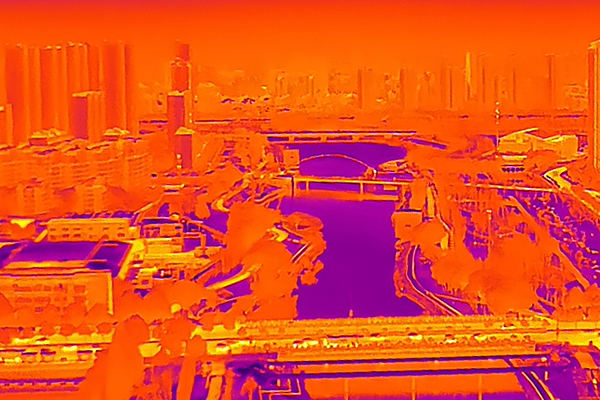

Infrared

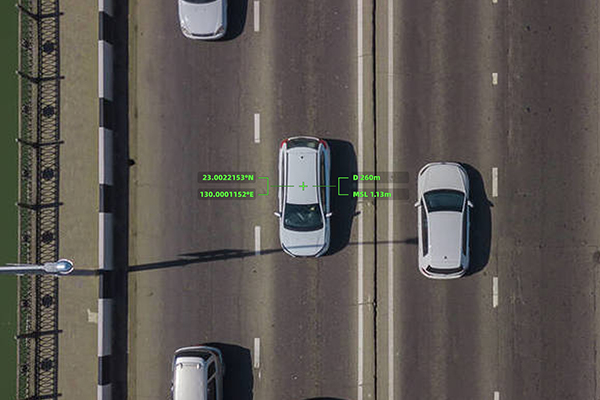

Accurate Positioning

Technical Parameters

30x Visible Light Sensor Parameters
	Resolution	1920x1080, 1280x720
	Sensor Size	1/3″
	Pixel Size	1.5 µm
	Lens Focal Length	4.9 mm ~ 49 mm
10x Visible Light Sensor Parameters
	Resolution	3264x2448
	Sensor Size	1/1.8″
	Pixel Size	2.9 µm
	Lens Focal Length	6.5 mm ~ 162.5 mm
Infrared Thermal Imaging Sensor Parameters
	Resolution	640x512
	Pixel Size	12 µm
	Lens Focal Length	25 mm
Laser Ranging Parameters
	Range	15-1500 m
