Handheld Ground Control Station

Product Overview

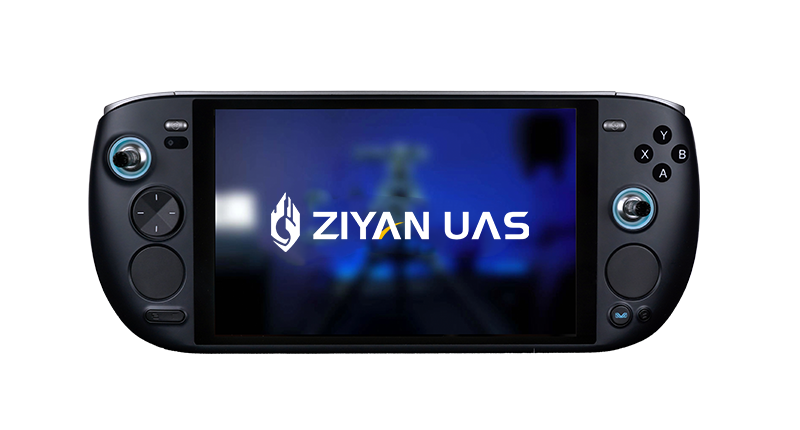

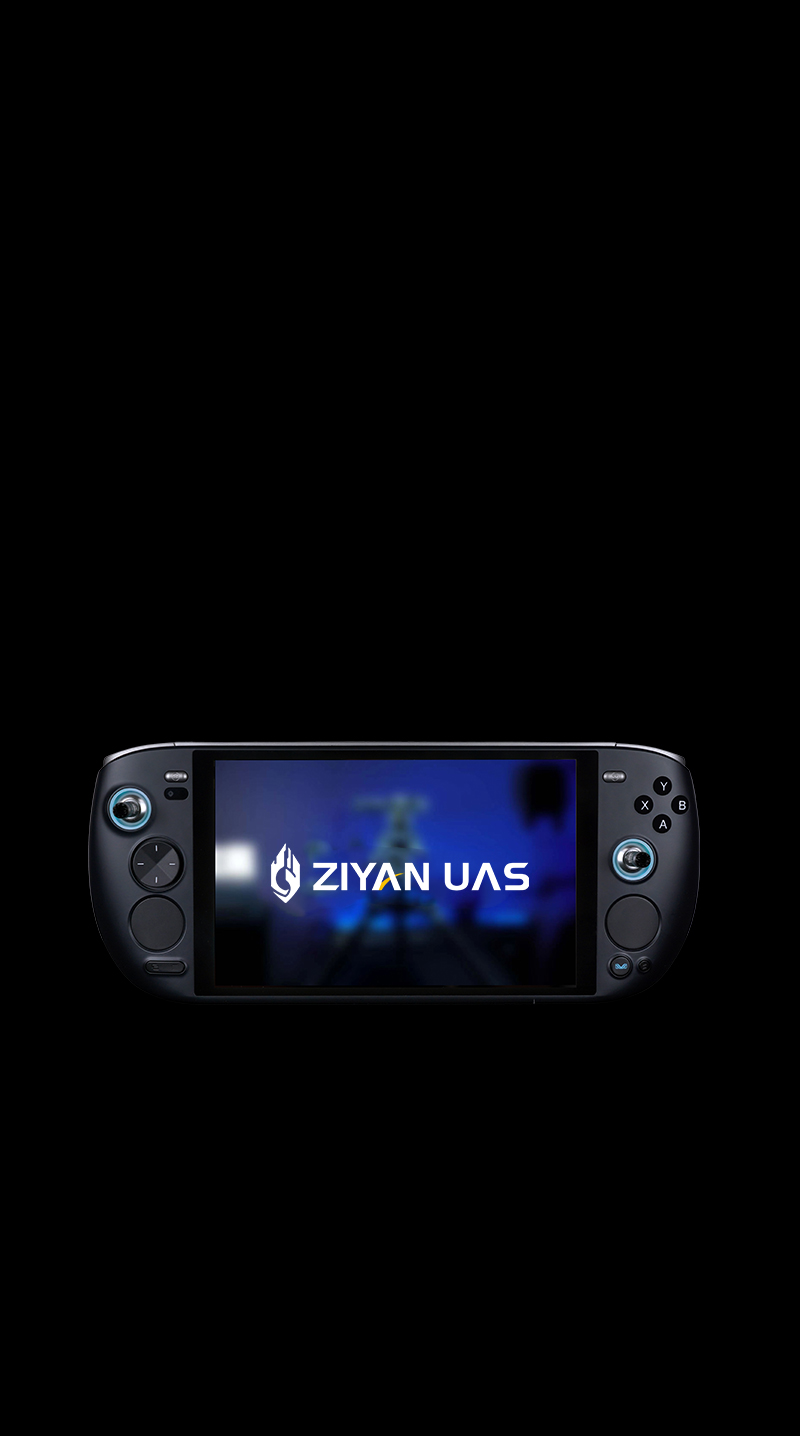

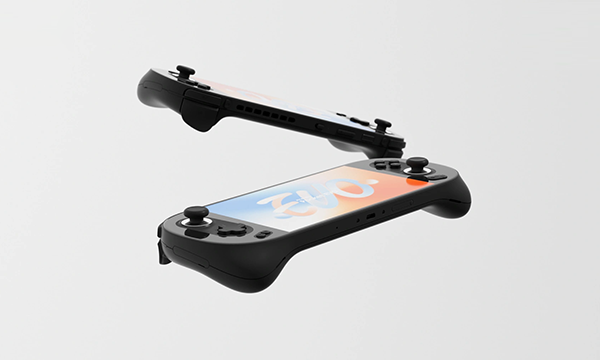

Ziyan ZY-GCSO2 Handheld ground control station is a device used for mission planning and real-time control of aircrafts and payload. It displays all telemetry information about the aircraft, on-board equipment control, real-time video display and other functions. It is equipped with 10.1" touch screen, 256GB storage, and a battery which provides up to 3 hours, comprehensively improving the control efficiency

Product Advantages

Effortless Control

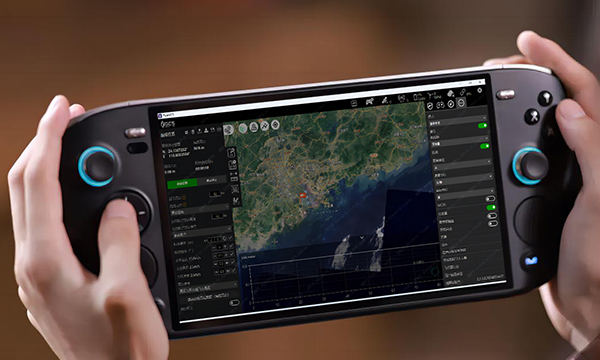

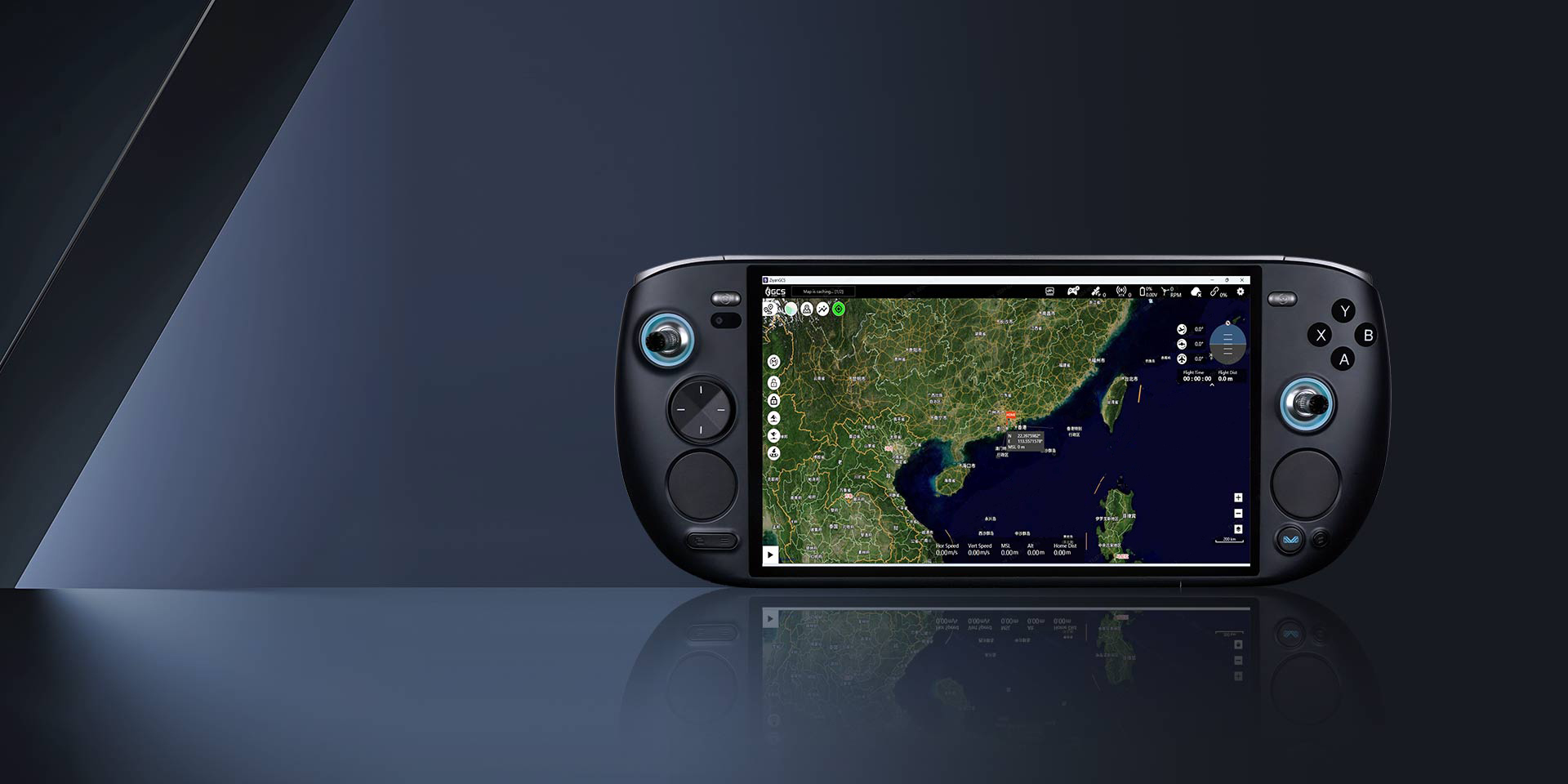

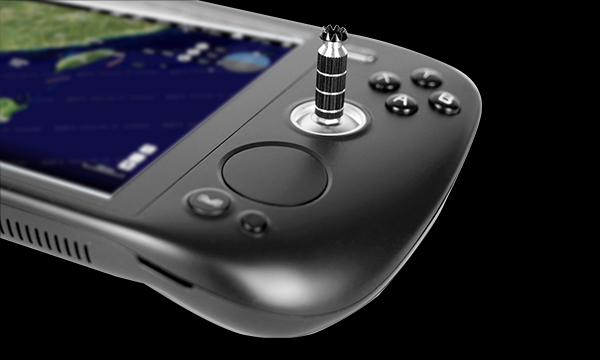

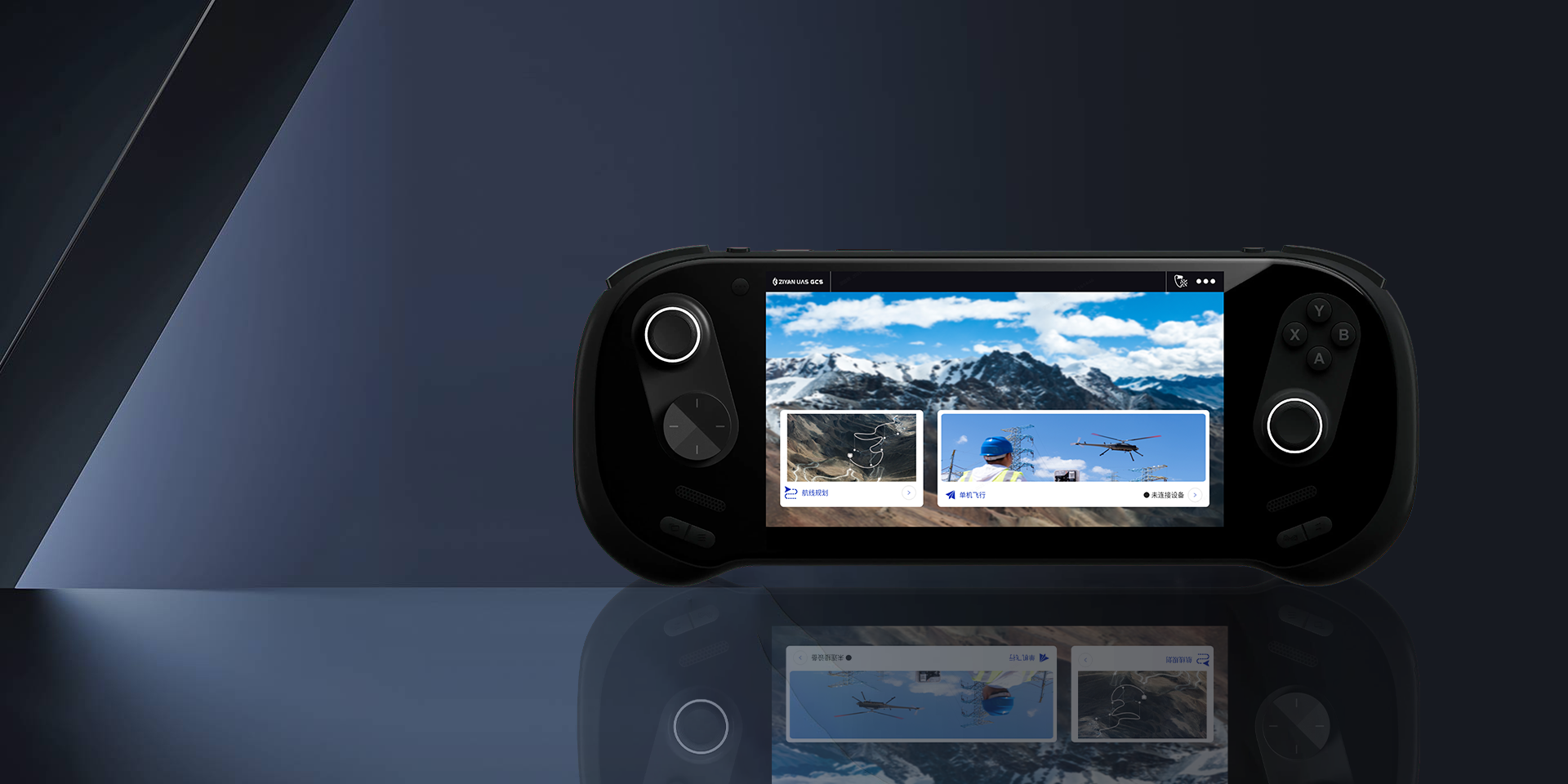

Equipped with a 10.1" touch screen (1920x1200 resolution), the station displays aircraft flight status and real-time video feed. It allows manual flight control via the integrated remote or automated flight route planning
Environmental Resilience

The handheld GCS works normally in cold temperature conditions going as low as -20°C and hot temperature conditions as hot as 55°C
256GB Storage

The handheld GCS comes with 256GB storage space which is sufficient for saving route plans, backup and video recordings
Dual-screen and Tri-screen Configurations

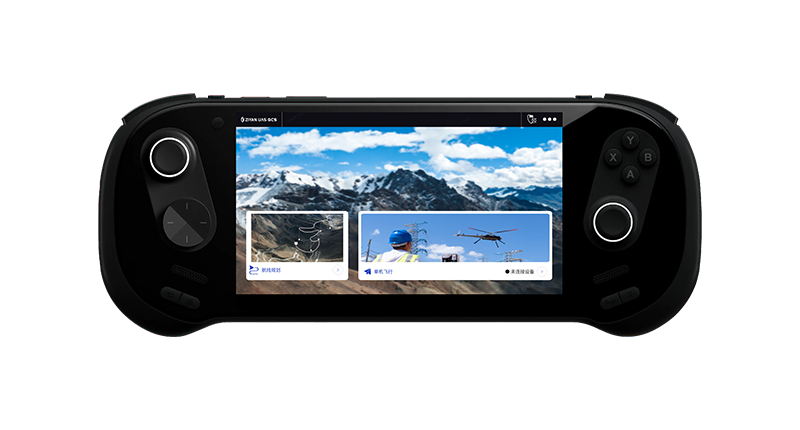

There are 3 different types of ground control station configurations: single screen, dual-screen and tri-screen. All configurations support GCS software interface

Technical Specifications

Handheld Ground Control Station	Dimensions	34523770mm
	Weight	2.9kg
	Display Size	10.1in
	Screen Brightness	600cd/m²
	Processor	I7-7500
	Memory	8GB/DDR4
	Storage	256GB SSD
	Battery	3h
Dual-screen Ground Control Station	Dimensions	42929088.6mm
	Weight	7.8kg
	Display Size	13.3in*2
	Screen Brightness	1000cd/m²
	Processor	I7-7500
	Memory	8GB/DDR4
	Storage	256GB SSD
	Battery	6h
Tri-screen Ground Control Station	Dimensions	427334138mm
	Weight	12.6kg
	Display Size	15.6in*3
	Screen Brightness	1000cd/m²
	Processor	I7-7500
	Memory	8GB/DDR4
	Storage	256GB SSD
	Battery	6h
